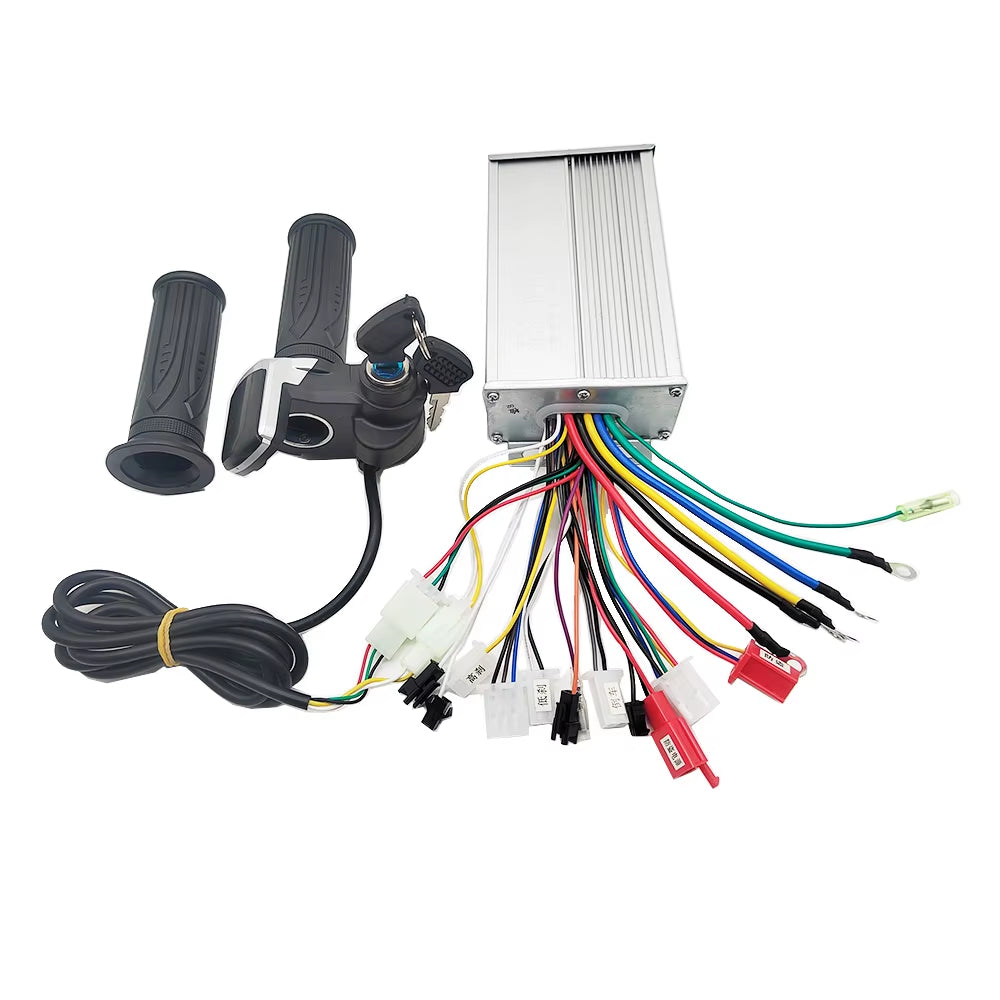

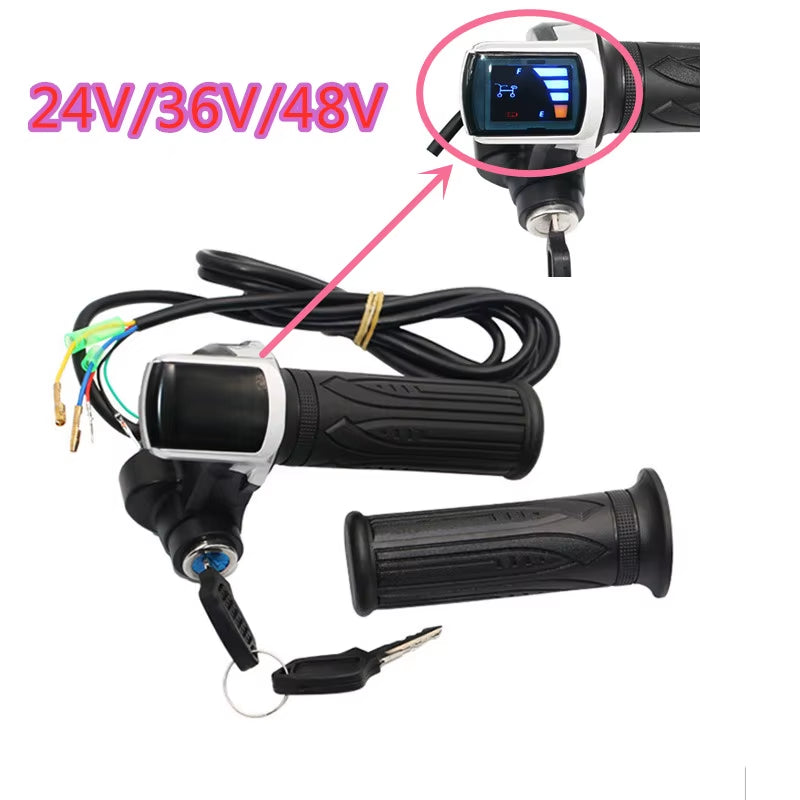

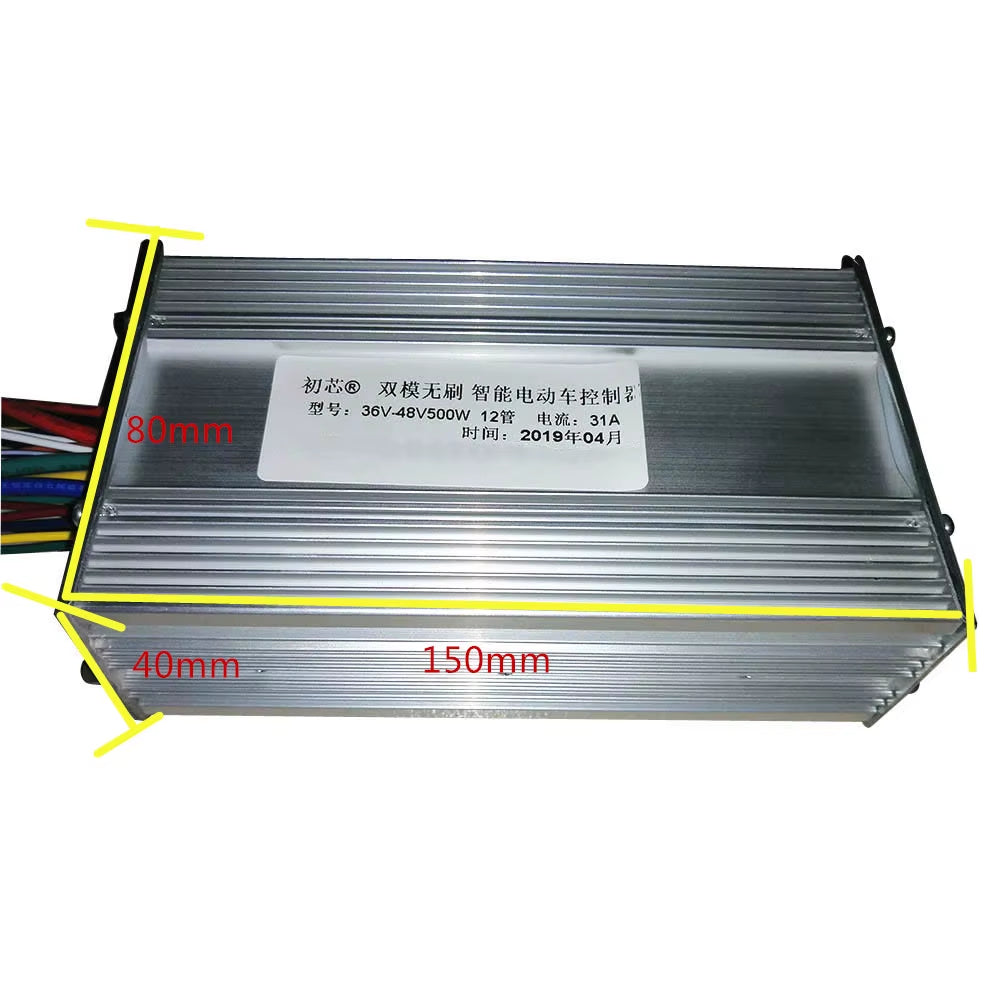

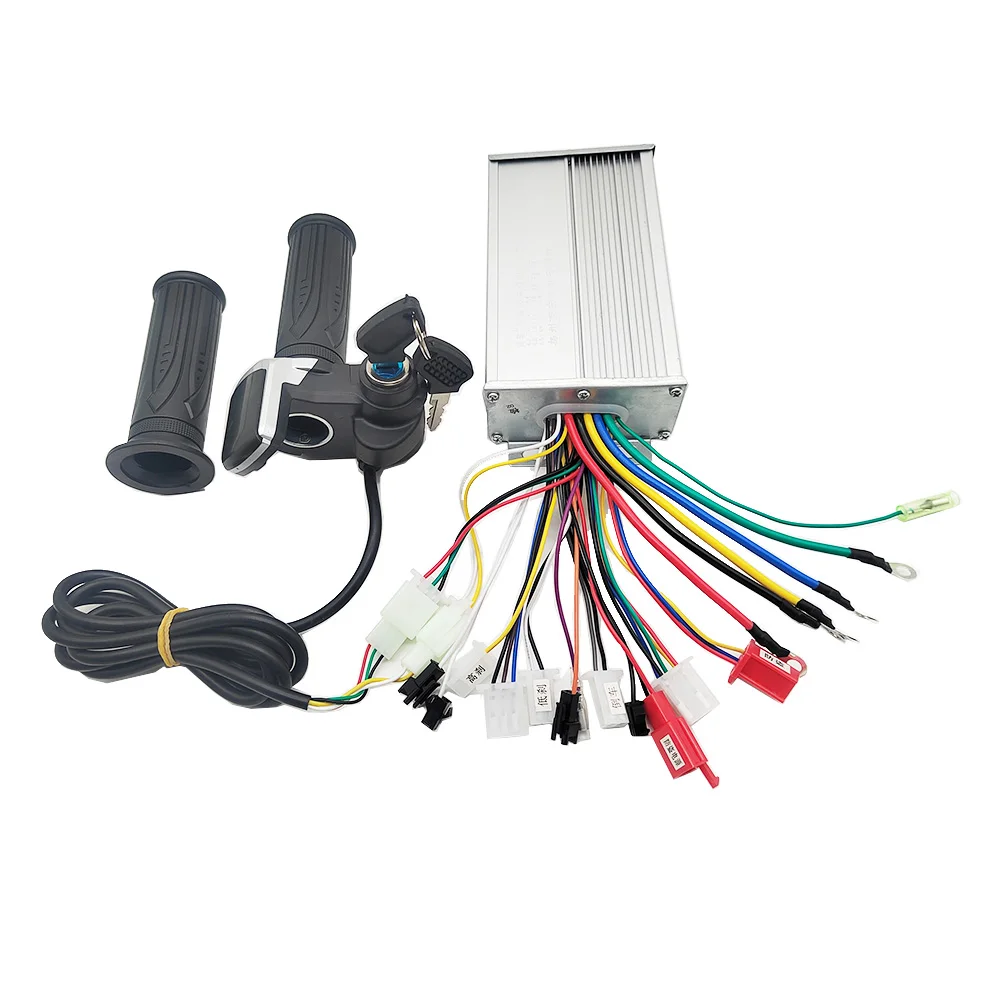

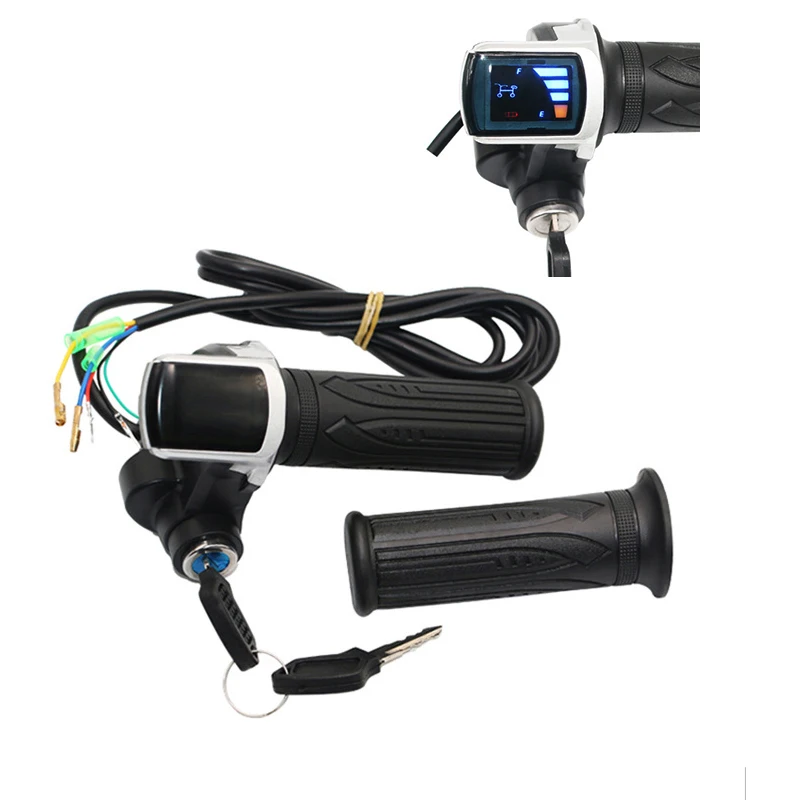

Twist Throttle Battery Display with Brushless Controller 36V 48V 500W for E-Bike/Scooter/Bldc Motor/Electric Bike

36V-48V 500W controller can work with hall connect sensor or not connect hall sensor

Rated Voltage: 36V/48V/60V

Low Voltage : 31V/42V/52V±0.5V

Rated Power: 500W

Limit Current:30A

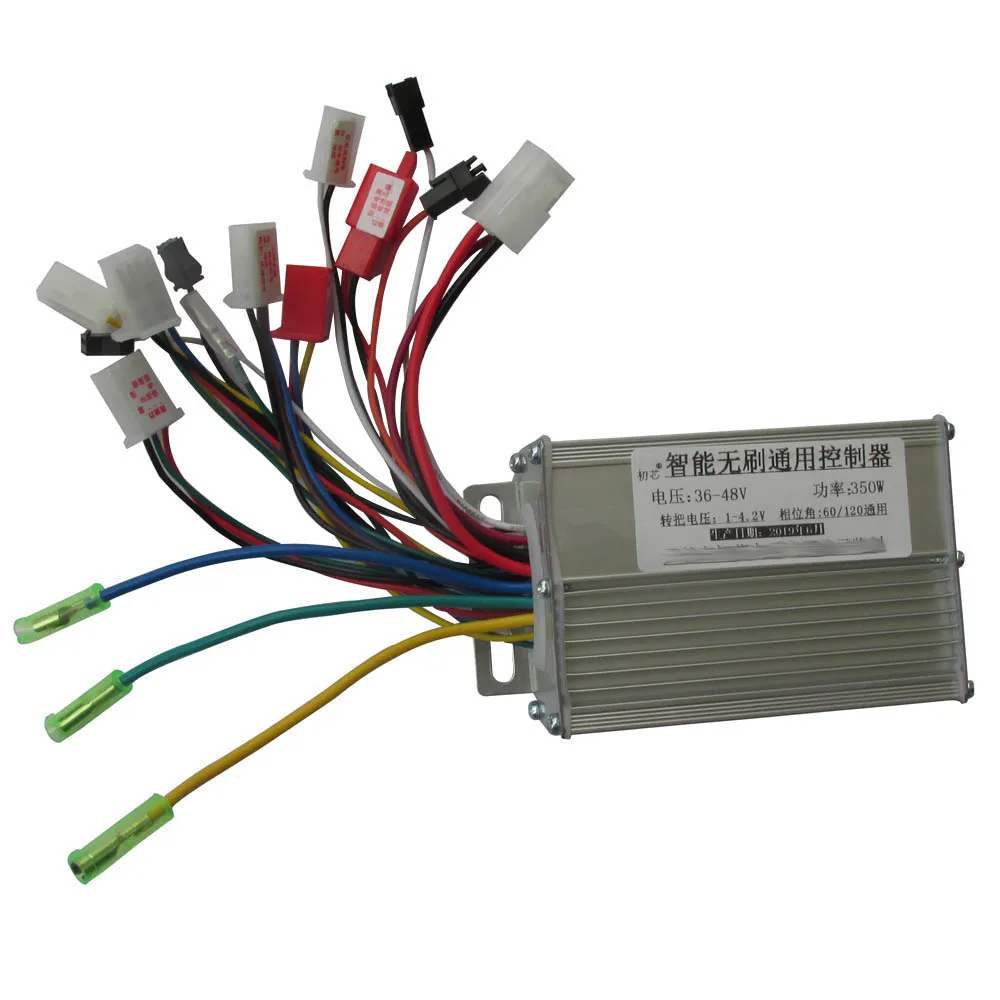

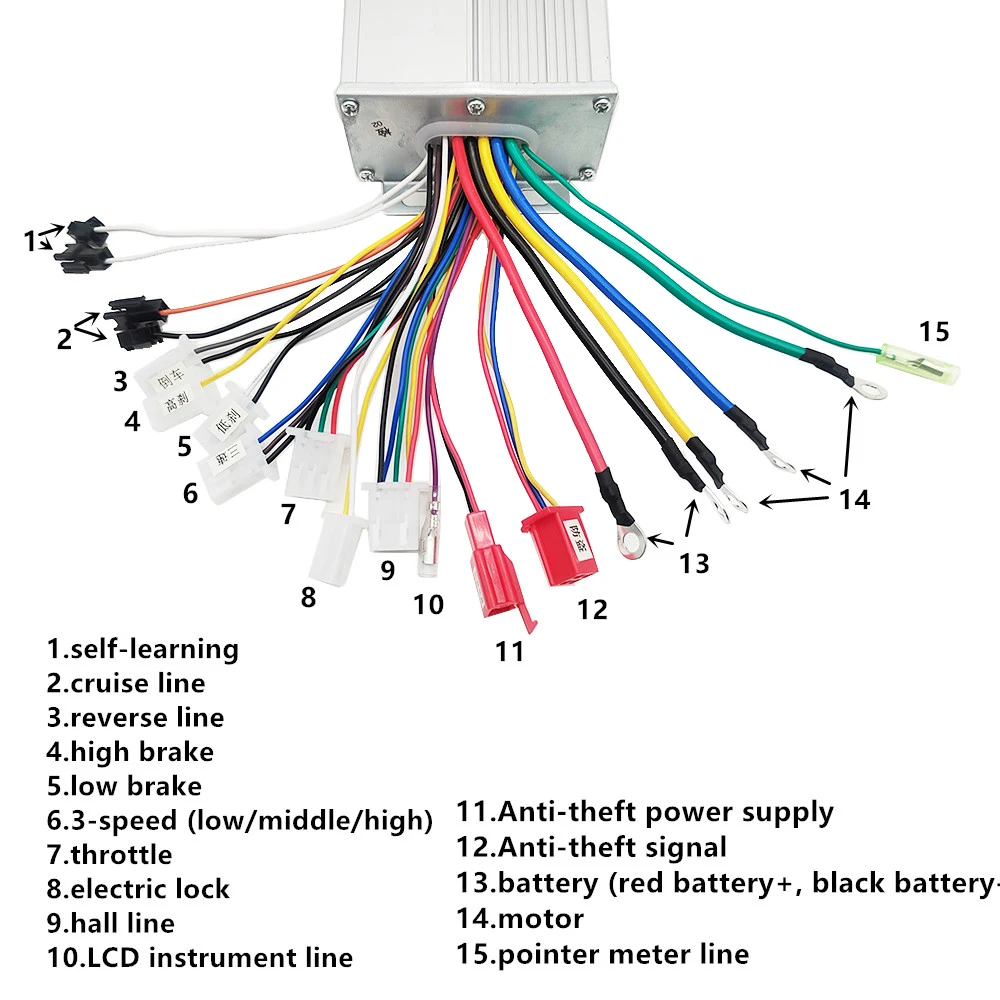

1.self-learning

2.cruise line

3.reverse line

4.high brake

5.low brake

6.3-speed (low/middle/high)

7.throttle

8.electric lock

9.hall line

10.LCD instrument line

11.Anti-theft power supply

12.Anti-theft signal

13.battery (red battery+, black battery-)

14.motor

15.pointer meter line

1.connect the motor line (color to color，if motor without hall line, don't need connect hall line）

2. connect the battery line(red:battery + , black:battery-)

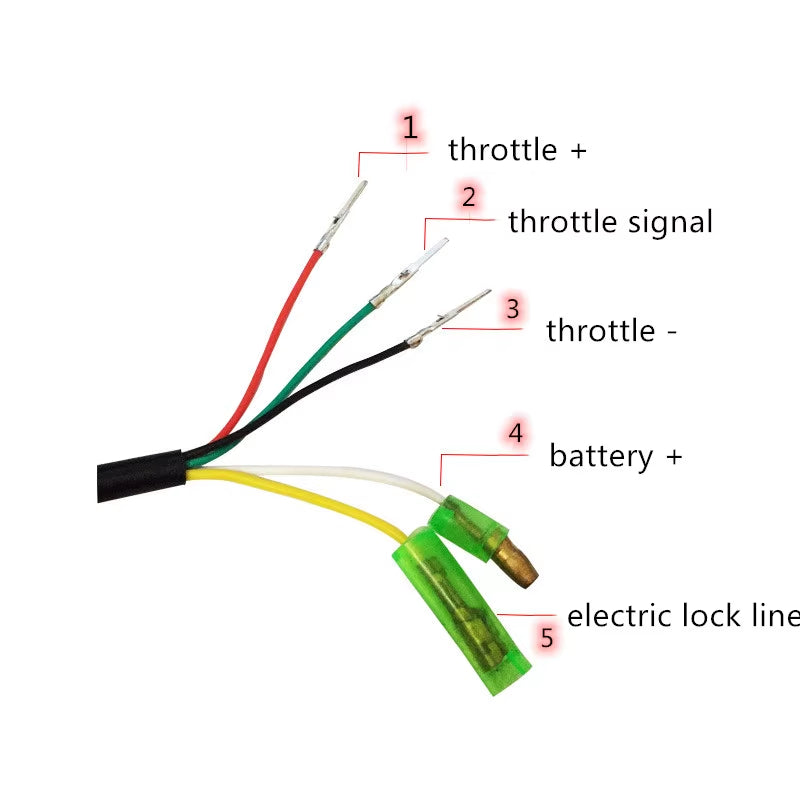

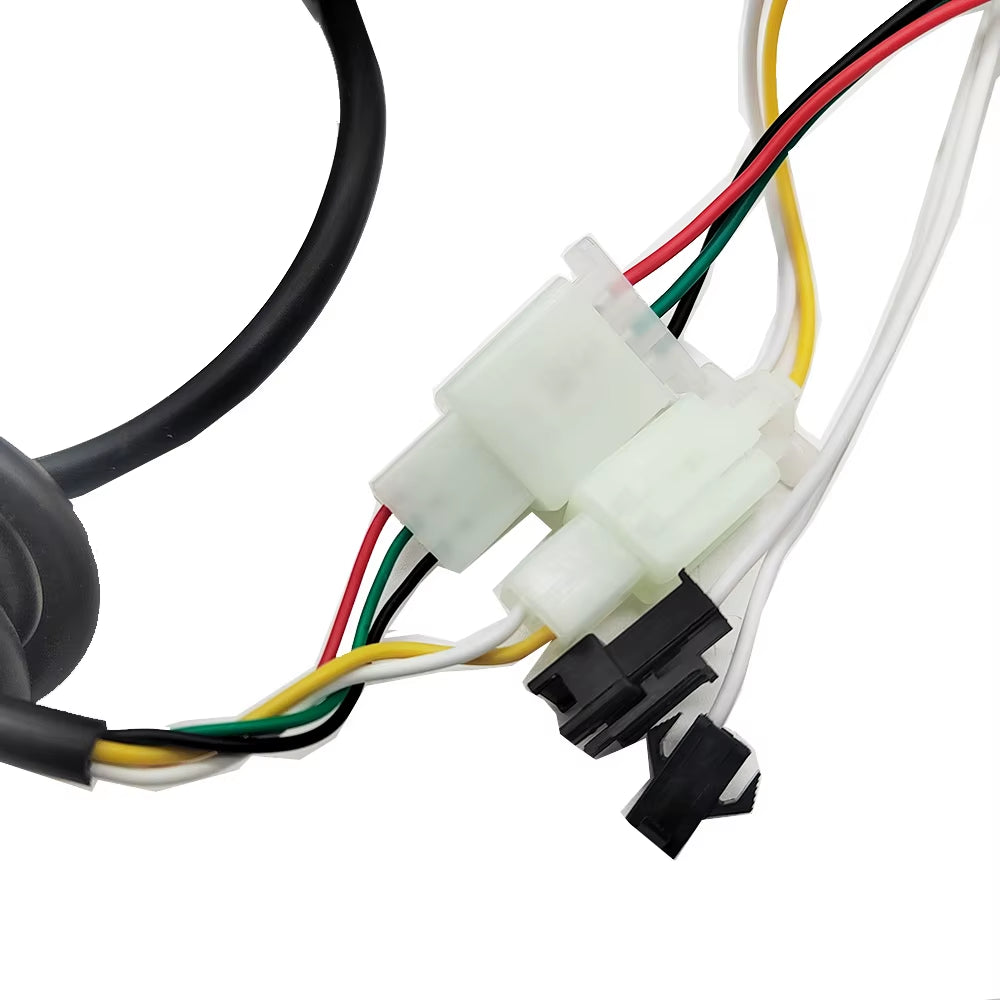

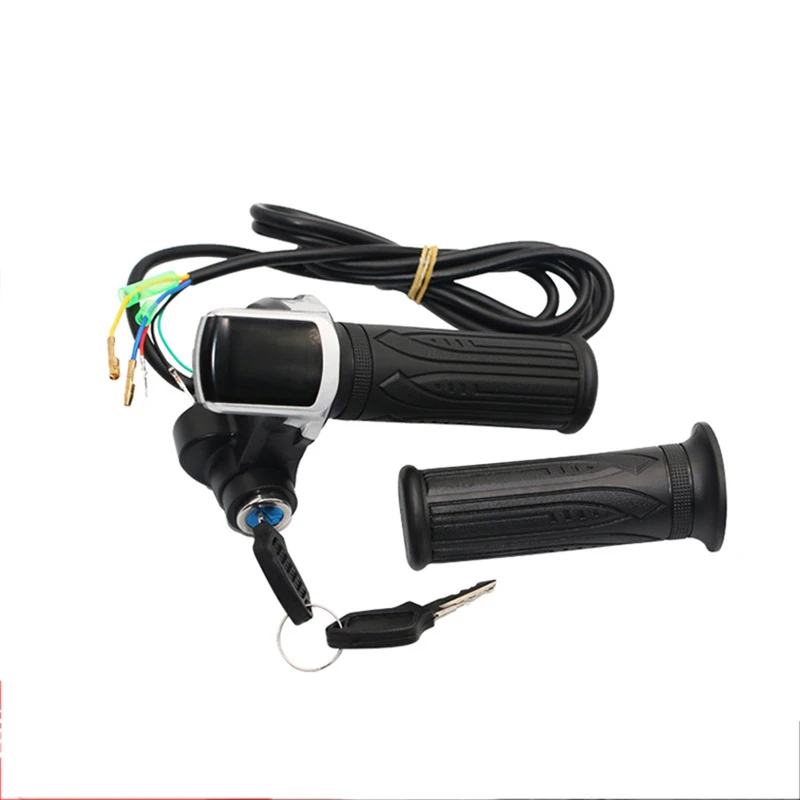

3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock

（if throttle not have electric lock,the electric lock 2 wires of the controller can be docked together）

4.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，

if wheel forward ,Separate the self-learning line.) Self-learning is to adapt to the supply voltage

5.other functions can be connected as needed.

NOTE:Due to the production of products from different factories, the wiring is not completely matched, and the buyer needs to adjust the wiring sequence themselves. throttle need red to red, green to green, blue to blue connect, like the picture show, thanks
